1966 mustang heater box

Here are before and after pics of the heater box. This box was sandblasted inside and out. All parts to the box were painted and new heater core and foam rubber installed. New cables and heater control knobs.

1966 mustang engine progess

Here you can see the engine is starting to take shape.

1966 mustang engine install

The pics above are of the stock 289 engine installed in the mustang.

1966 Mustang Rack

These pics show the install of the Randels Rack. This is not an easy task to do on a 1966 mustang. Installing the rack to the body is a cake walk. The steering Shaft is a whole different world. The instruction are real brief.

1966 mustang sway bar

These two pics show the new ADDCO sway bar. This Bar is 1 and 1/8 in diameter.

1966 Ford Mustang.

This mustang started out with a inline 6. Now it is being upgraded with a 289 V8. Stock V8 that is.

1966 Ford Mustang.

This picture is of the inside of the trunk

1966 Ford Mustang.

Here is the style of rims that have been selected for the car.

1966 Ford Mustang.

Here is a view of the 9'' rear end with the rims and tires on it.

1966 Ford Mustang.

The front suspension is all new components. Plus a ssbc disc brake system. Also the front end has be dropped one inch. Its called the Shelby drop. It lowers the car 0 to 1 inch. But the main reason for the drop is performance. If you go back and look at the brake buster picture you can see the drivers shock tower. Here you will see the A frame holes have been moved.

1966 Ford Mustang.

The mustang has new rear springs plus a Ford 9'' rear end with 3:89 gears. Plus rear disc brakes.

1966 Ford Mustang.

The 1966 mustang is getting power brakes. The brakes system is SSBC.

1966 Ford Mustang.

The color is Silver Frost.

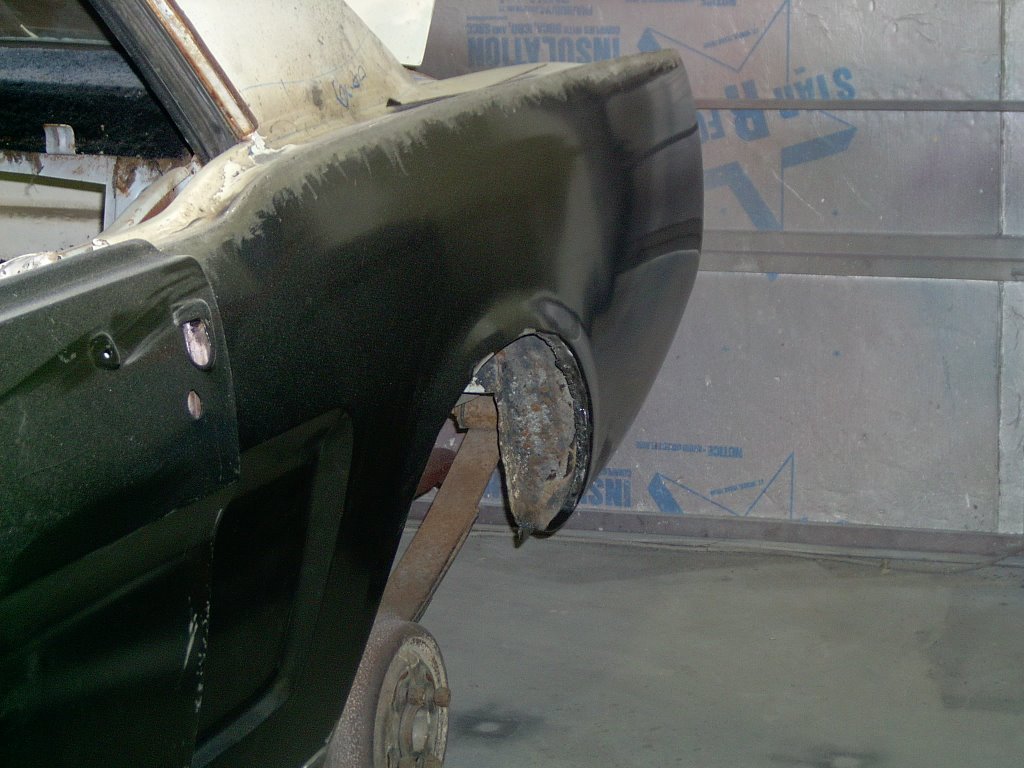

The rear quarter skin is now completed. The Mustang is going to have a different front end. We have installed a custom Valance in place of the old two piece with bumper. The car will have no front bumper.

We are now into the rust repair of the project. The door and the rear quarter of the car had alot of rust. We are installing new sheet metal on the door and rear quarter.
